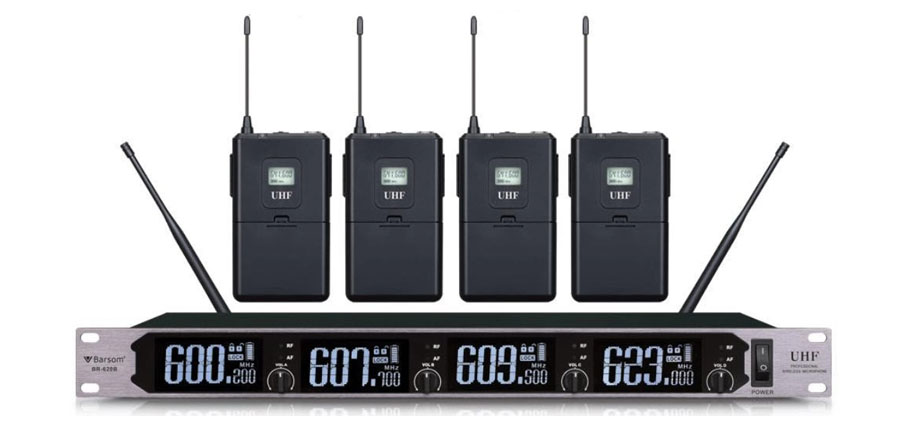

Receiver Specifications
Frequency range: 640-690MHz
Frequency oscillation mode : Phase- locked loop
Total Channels: 4CH
Frequency response: 50Hz～18Khz
Distance: 30feet
Frequency interval: 40KHz
Bandwidth: 24MHz
Stability: ±5PPm≦10KHz
Image interference ratio: ﹥80Db
Signal to Noise Ratio: ﹥105dB(1KHz-A)
Sensitivity: -105dBm(12dB S/N AD)
T.H.D: ﹤0.5%@1KHz
Audio output impedance: 2.2KΩ
Audio Output Level: -12dB
Mute mode: Mute & locked loop
Function Display: LCD
Power supply: 14-17V DC,600mA
The output plug of: 1 XLR Balanced Socket Unbalance
TRSΦ6.3mm Socket
Transmitter Specifications
Frequency range: 640-690MHz
Total Channels: 4CH
Bandwidth: 24MHz
Frequency interval: 40KHz
Dynamic range: >110dB
Frequency stabitity: ±5PPm≤10KHz
Modulation deviation range: 48KHz
Sub-harmonic: <-60dBc
RF output power: 20mW
Power consumption: 100mA@1.5VX2
Function Display: LCD
Monomer: Dynamic Micophone
Power supply: UM3,AA1.5vX2
